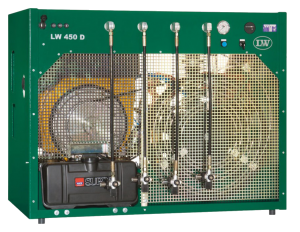

For applications where large quantities of air are required without sufficient electrical power supply. Whether on a remote island, a large safari boat or a truck mounted filling station, the LW 450 D is ready for the next challenge. The compressor has a self contained 12V DC power supply providing electric start, idle and full speed selector, automatic idle and condensation drain when final pressure is reached and a condensation test function. The integrated filling unit with 4 filling hoses and filling valves completes the unit.

Specifications

– Self contained unit, ready to start with Hatz 10,0 kW Motor in Hatz Silent Pack with 12V electrical/pneumatic compressor control

– Original Hatz diesel tank

– Operating panel with key start/stop, condensation drain test, pressure gauge, speed selector, hours counter, diesel motor oil pressure and battery warning lamps

– Automatic idle speed selector and condensation drain when end pressure is reached (compressor switches to full speed and drain valves close when empty tanks are opened)

– Emergency stop switch

– Sturdy steel frame, powder coated in RAL 6026

– All pistons with steel piston rings

– 3 concentric suction/pressure valves

– Low pressure oil pump

– Oil/water separators after each stage, safety valve for each stage

– Breathing air purification in accordance with EN 12021

– Pressure maintaining and non-return valve

– 4 Filling hoses and filling valves and/or HP outlet

Options

– 200/300 bar parallel filling pressures

– Oil pressure gauge

– Inter stage pressure gauges
